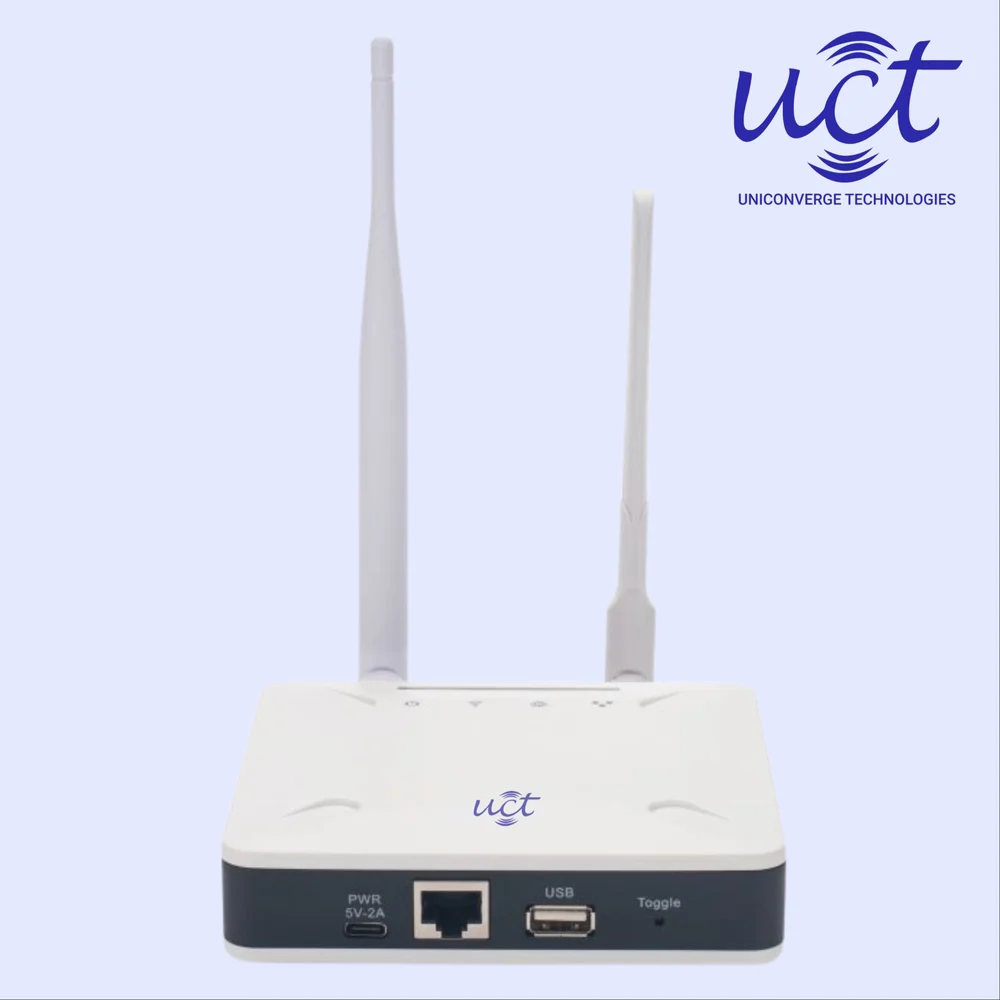

Indoor LoRaWAN Gateway

Wireless Gateways

Compact, low-cost, low-power wide area network (LPWAN) wireless gateway supporting Semtech LoRaWAN® long-range wireless protocol.
Compact design measuring 197.5 x 90 x 60 mm, housed in an ABS enclosure for space-efficient installations.
Features Semtech SX1302 baseband processor with a pair of SX1257 highly integrated RF front-end transceivers.
Multi-PHY mode and I/Q modem on chip for flexible communication capabilities.
Ideal for indoor and compact space deployments requiring reliable LoRaWAN connectivity.

Description

The UCT LoRaWAN Gateway is a compact, low-cost, low-power wide area network (LPWAN) wireless gateway that supports Semtech LoRaWAN® long-range wireless protocol. This gateway is designed for space-efficient installations, measuring just 197.5 x 90 x 60 mm and housed in an ABS enclosure.

The gateway features a Semtech SX1302 baseband processor along with a pair of SX1257 highly integrated RF front-end transceivers. The SX1257 provides multi-PHY mode and I/Q modem on chip capabilities, enabling flexible communication options for various LoRaWAN applications.

This compact gateway is ideal for indoor deployments and applications where space is limited, such as office buildings, warehouses, and small industrial facilities. Despite its small size, it provides reliable LoRaWAN connectivity for IoT devices over long ranges.

System Configuration

Core	Cortex-A53 64-bit
Clock Frequency	1.2 GHz
RAM	1GB SDRAM
Flash	16GB Flash

LoRaWAN®

Baseband	SX1302
RF FrontEnd	SX1257
Max RF Transmit Power	+27 dBm
Receive Sensitivity	Down up to -145 dBm on SF12 & 125KHz Channel BW
SNR Sensitivity	up to -20dBm
Frequency	865-867MHz (ISM Band India)
No. of Channels	8 Channels, 125 KHz per Channel
Spread Factor	SF7-SF12
Data Rate	Modular 250 - 5470 bits/sec
LoRa Antenna Port	1 × 50 Ω SMA Female

Internet Backhaul

Wired	Ethernet 10/100
WiFi	2.4 GHz with on-board WiFi Antenna
Cellular	4G
Cellular Antenna Port	1 × 50 Ω SMA Female

Power Supply

Default	5V DC thru AC-DC adaptor
Optional	N/A
Power Consumption	5W Typical, MAX 6.5W

Enclosure

Ingress Protection Level	IP65
Dimensions	197.5 x 90 x 60mm
Weight	TBD
Mounting Option	Tabletop / WallMount

Environment

Operating Temperature	-20°C to +70°C
Storage Temperature	-20°C to +85°C
Relative Humidity	0% to 90% (non-condensing) at 25°C

Key Features

LoRaWAN® Protocol Support

Full support for Semtech LoRaWAN long-range wireless protocol with multi-channel capability.

SX1302 Baseband Processor

Advanced baseband processor with SX1257 RF front-end transceivers for superior performance.

High Transmit Power

Maximum RF transmit power of +27 dBm for extended range coverage.

Multiple Backhaul Options

Ethernet, WiFi 2.4GHz, and 4G cellular connectivity for flexible deployment.

8 Channel Support

8 channels with 125 KHz per channel, supporting SF7-SF12 spread factors.

Compact Design

Space-efficient 197.5 x 90 x 60 mm enclosure ideal for indoor installations.

Low Power Consumption

Typical power consumption of 5W (MAX 6.5W) for energy-efficient operation.

IP65 Protection

Robust ABS enclosure with IP65 ingress protection for reliable operation.

Functional Description

The LoRaWAN Gateway operates as a bridge between LoRaWAN end devices and the network server, receiving and forwarding data packets from multiple IoT sensors and devices.

Multi-channel reception capability allows the gateway to simultaneously receive data from multiple LoRaWAN devices operating on different channels and spread factors.

Internet backhaul connectivity (Ethernet, WiFi, or 4G) enables real-time data transmission to cloud-based LoRaWAN network servers and IoT platforms.

Bidirectional communication supports both uplink (device to server) and downlink (server to device) data transmission for remote control and configuration.

Configuration and management can be performed through web-based interface or network server integration for easy setup and monitoring.
