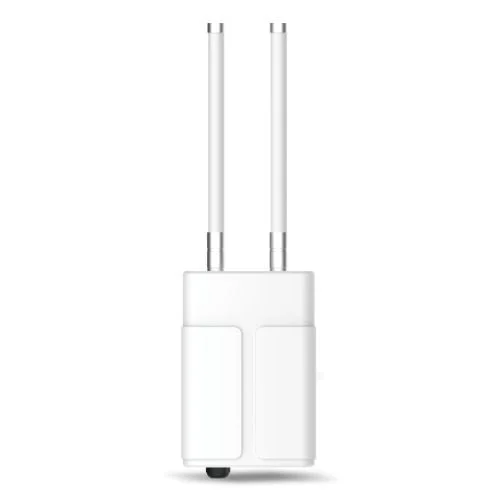

UG67 LoRaWAN Gateway

IoT Gateway

8-channel outdoor LoRaWAN® gateway with SX1302 LoRa chip and high-performance quad-core CPU.
Supports connection with more than 2000 nodes with line of sight up to 15 km.
IP67 waterproof case ideal for smart agriculture, smart metering, and outdoor applications.
Multiple backhaul options: Ethernet, Wi-Fi, and cellular connectivity.
Integrated network servers (The Things Stack, ChirpStack) and built-in network server for easy deployment.

Description

The UG67 is a robust 8-channel outdoor LoRaWAN® gateway designed for long-range IoT connectivity in challenging outdoor environments. Built with the SX1302 LoRa chip and a high-performance quad-core CPU, the gateway supports connection with more than 2000 nodes and offers line-of-sight communication up to 15 km.

The gateway features an IP67 waterproof case, making it ideal for smart agriculture, smart metering, and various outdoor IoT applications. It supports multiple backhaul options including Ethernet, Wi-Fi, and cellular connectivity, ensuring reliable data transmission even in remote locations.

UG67 comes with integrated mainstream network servers such as The Things Stack and ChirpStack, along with a built-in network server and Milesight Development Platform, enabling easy deployment and management of LoRaWAN networks.

Hardware System

CPU	Quad-core 1.5GHz, 64-bit ARM Cortex-A53
Memory	512MB DDR4 RAM
Flash	8GB eMMC

LoRaWAN®

Antenna Connector	2×50 Ω N - Female
External Connectors Channel	8 (Half/Full-duplex)
Frequency Band	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 Sensitivity-140dBm Sensitivity @292bps
Tx Power	27dBm Max
LBT	Support

Ethernet Interface

Port	1 × RJ45 WAN Port
(PoEPD supported) Physical Layer	10/100/1000 Base-T
Data Rate	10/100/1000Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Ethernet Isolation	1.5 kV RMS

Wi-Fi Interface

Antenna	Internal Antenna
Standards	IEEE802.11b/g/n, 2.4GHz
Tx Power	802.11b: 18 dBm ± 2 dBm (11 Mbps) 802.11g: 15 dBm ± 2 dBm (6 Mbps) 802.11g: 15 dBm ± 2 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm ± 2 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm ± 2 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm ± 2 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm ± 2 dBm (MCS7_HT40)

Cellular Interface (Optional)

Network	4G LTE
Antenna	Internal Antenna
SIM Slot	1 (min iSIM-2FF)

GNSS

Technology	GPS/GLONASS/QZSS/SBAS
Antenna	Internal Antenna
Position Accuracy	2.5m CEP (Open Air)
Sensitivity	-161dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition

Environmental

Operating Temperature	-40°C to +70°C (-40°F to +158°F), Reduced Cellular Performance Above 60°C
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	0% to 95% (non-condensing) at 25°C / 77°F

Key Features

8-Channel LoRaWAN Gateway

Supports up to 2000+ nodes with high-capacity connectivity.

15 km Line of Sight Range

Extended range communication for wide-area coverage.

IP67 Waterproof Rating

Rugged outdoor design for harsh environmental conditions.

Multiple Backhaul Options

Ethernet, Wi-Fi, and cellular connectivity for flexible deployment.

Integrated Network Servers

The Things Stack, ChirpStack, and built-in network server support.

SX1302 LoRa Chip

High-performance LoRa concentrator for reliable communication.

Quad-Core CPU

High-performance 64-bit ARM Cortex-A53 processor.

Multi-Region Support

Supports CN470, IN865, EU868, RU864, US915, AU915, KR920, AS923 frequency bands.

Functional Description

LoRaWAN Gateway Function receives LoRaWAN packets from end devices and forwards them to network servers via multiple backhaul options (Ethernet, Wi-Fi, or cellular).

Network Server Integration supports multiple network server options including The Things Stack, ChirpStack, built-in network server, and Milesight Development Platform.

Backhaul Connectivity provides redundant communication paths with Ethernet, Wi-Fi, and cellular options to ensure reliable data transmission.

Configuration and Management can be performed through web interface, allowing remote setup, monitoring, and firmware updates.

Outdoor Protection with IP67 rating ensures reliable operation in harsh weather conditions, making it suitable for outdoor installations.

Applications

LoRaWAN network gateway for IoT deployments

Smart metering and utility monitoring networks

Industrial IoT gateway for remote monitoring

Energy management and monitoring networks

Water and wastewater monitoring networks

Smart city LoRaWAN gateway deployments

Remote site monitoring and control
