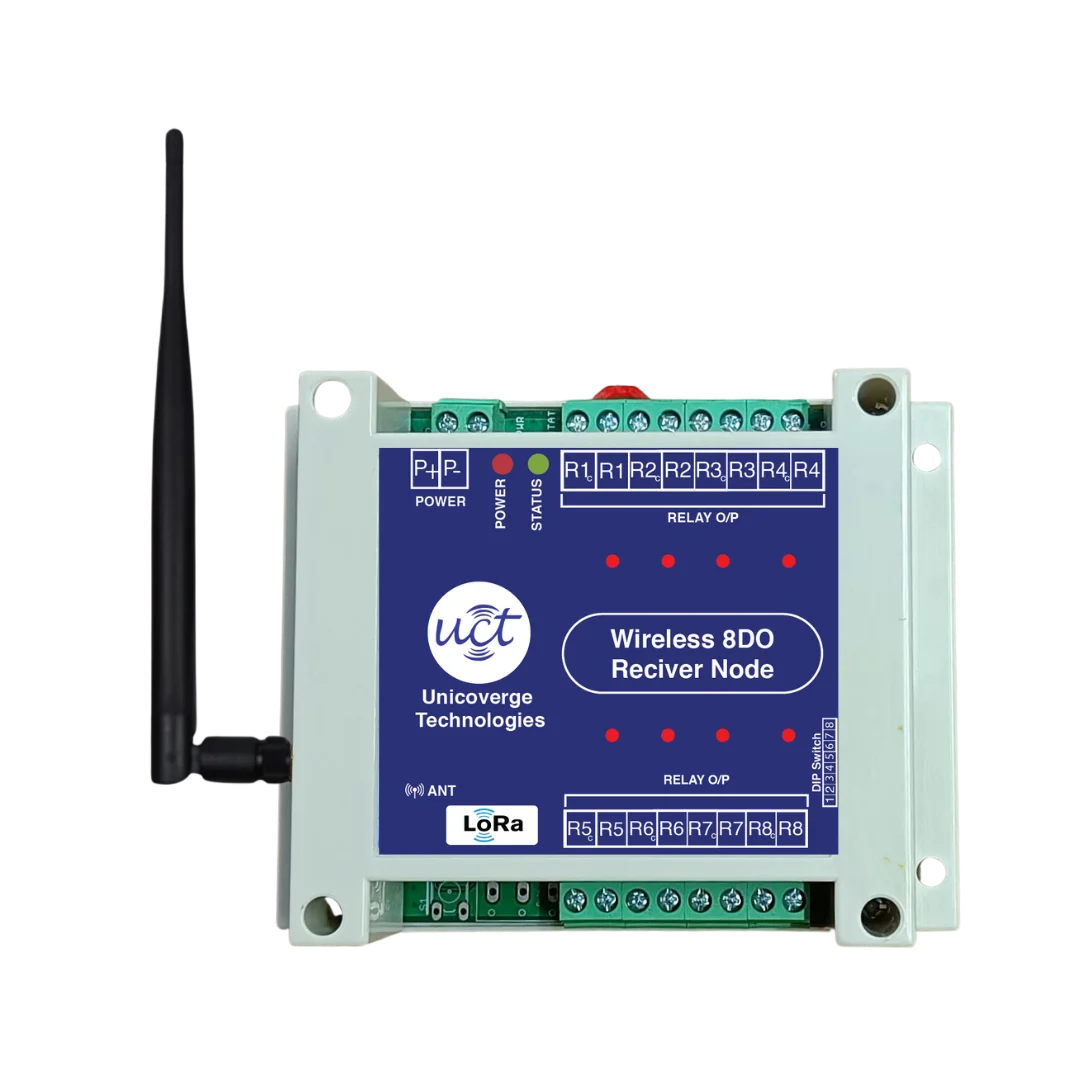

8 Digital Input 8 Digital LoRa Transmitter & Receiver

Wireless Transmitter & Receiver Module

Industrial-grade wireless I/O module with 8 digital inputs and 8 digital outputs.
Transmits digital input states and receives digital output control commands over LoRa wireless communication.
Designed for long-range, low-power communication ideal for distributed automation and remote monitoring.
Eliminates long cable runs—modules can be placed near sensors/actuators while communicating wirelessly.
Highly reliable in harsh industrial environments with opto-isolated I/O and surge protection.
Compact, easy-to-install module suitable for control panels, field enclosures, and remote sites.

Description

The 8 Digital Input 8 Digital Output LoRa Transmitter & Receiver Module is an industrial-grade wireless I/O solution. It is designed to transmit digital input states and receive digital output control commands over LoRa wireless communication technology. This enables long-range, low-power communication, making it ideal for distributed automation and remote monitoring applications where running cables is expensive or physically challenging.

The module features 8 opto-isolated digital inputs and 8 digital outputs, ensuring reliable operation in harsh industrial environments. Its rugged, DIN-rail mountable design makes it suitable for installation in control panels and field enclosures. With its ability to eliminate long cable runs, this module significantly reduces installation costs and complexity.

Specifications

Digital Inputs	8 channels, opto-isolated
Input Voltage Range	0–24 V DC
Input Response Time	< 100 ms
Digital Outputs	8 channels, relay/transistor, opto-isolated
Communication Interface	LoRa Wireless
LoRa Frequency	Customize: 433/868/915 MHz depending on region
Topology	Point-to-point
Power Supply	9–24 V DC

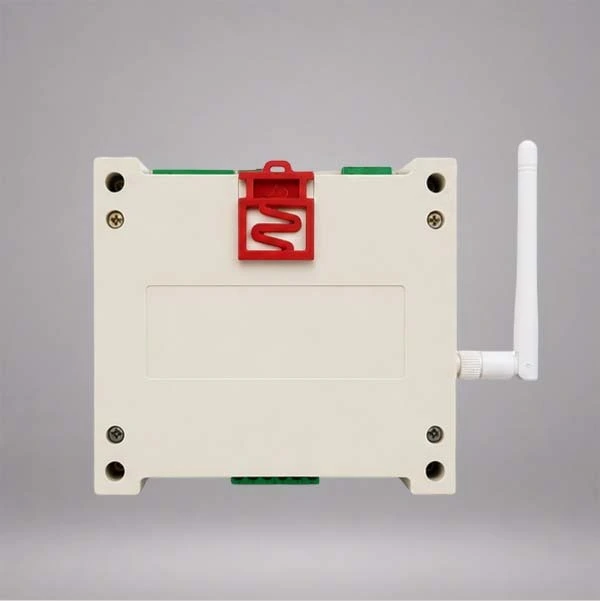

Mounting	DIN-rail
Operating Temperature	−20 °C to +75 °C
Storage Temperature	−40 °C to +85 °C
Humidity	10–95% RH, non-condensing

Key Features

Digital Inputs (8 Channels)

Opto-isolated, supports dry contact/PNP, detects ON/OFF states.

Digital Outputs (8 Channels)

Opto-isolated relay/transistor outputs for controlling loads.

LoRa Wireless Communication

Long-range, low-power RF technology for remote monitoring.

LED Indicators

Status LEDs for Power, Wireless Tx/Rx, and I/O channels.

Industrial Design

Rugged ABS enclosure, 9–24 V DC power with reverse polarity protection.

Protection

Opto-isolation prevents ground loops and electrical damage.

Functional Description

Digital Input Functionality: Reads ON/OFF signals from switches, sensors, push buttons, etc. Converts states into wireless LoRa packets. Suitable for event detection, alarms, pulse inputs (optional).

Digital Output Functionality: Receives commands wirelessly from a LoRa transmitter or gateway. Controls actuators, indicators, buzzers, and relays. Offers fast and reliable switching.

Wireless Communication: Long-distance communication between transmitter and receiver modules. Ideal for remote sites where wiring is expensive or impractical. Supports network expansion.

Protection & Diagnostics: Opto-isolation for noise, surge, and transient protection. LED indicators provide easy status monitoring and troubleshooting.
