4 Optically Isolated Digital Inputs
Support source type connections for reliable signal acquisition.

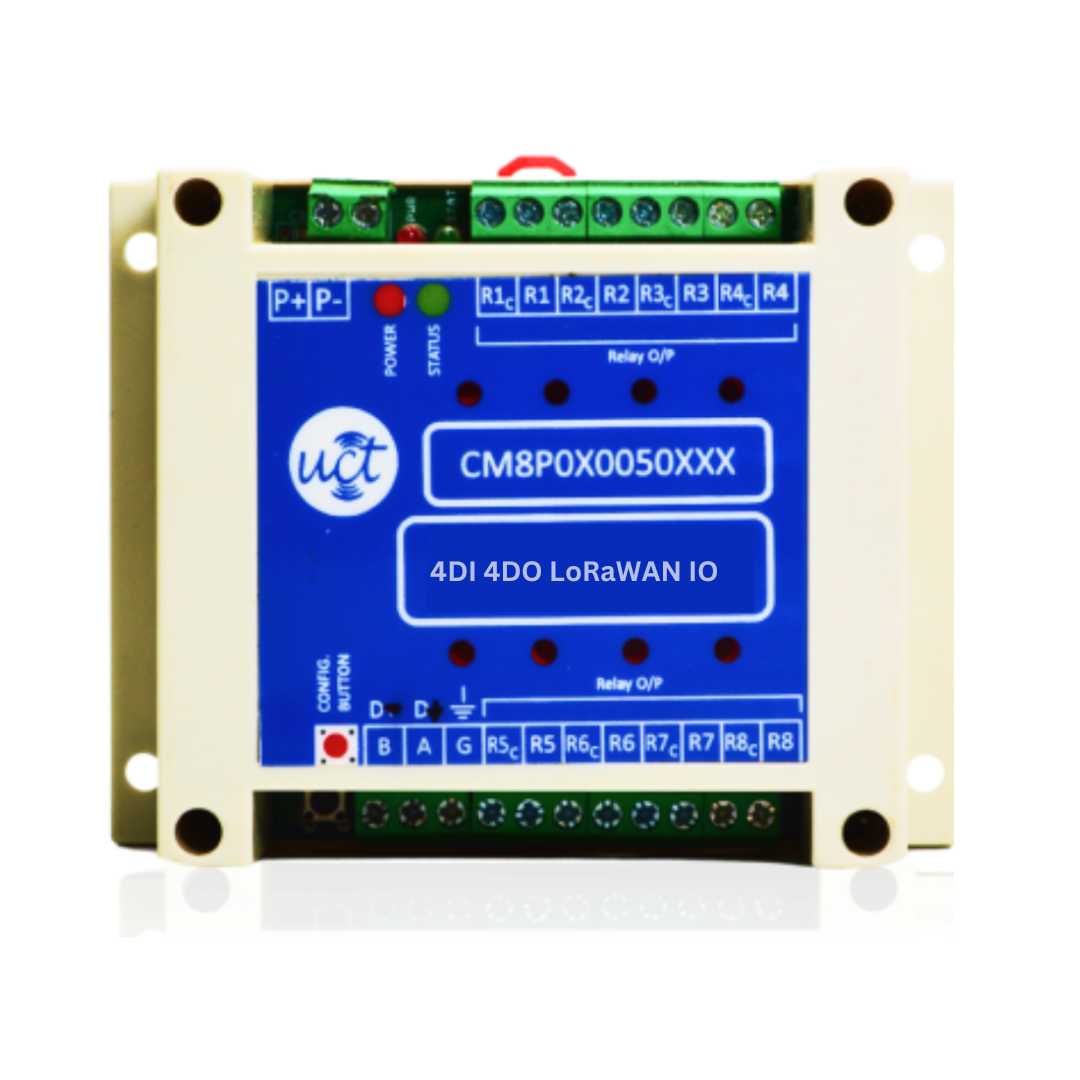

LORAWAN I/O MODULE
4 Digital Input 4 Digital Output to LoRaWAN
The 4DI/4DO LoRaWAN module offers 4 optically isolated digital inputs and 4 relay outputs — enabling seamless remote monitoring and control over long-range LoRaWAN networks with minimal power consumption.

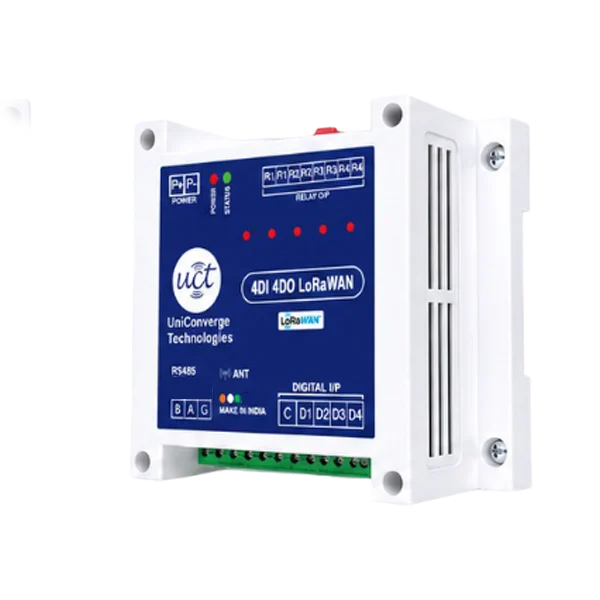

Device Overview
The 4DI/4DO LoRaWAN Remote I/O Module is a wireless industrial I/O device designed for reliable digital signal acquisition and control in distributed automation systems. It supports LoRaWAN communication protocol, enabling long-range, low-power connectivity for IoT applications.
With 4 optically isolated digital inputs and 4 digital outputs, the module is ideal for monitoring switches, sensors, and controlling actuators or relays in remote locations. It supports Class A, B, and C LoRaWAN device classes, making it suitable for various deployment scenarios.
This device provides extended range communication, battery efficiency, and industrial-grade reliability, making it suitable for smart agriculture, remote monitoring, asset tracking, and wireless industrial automation applications.
Hardware Overview
-
Compact ABS Enclosure Dimensions: 115mm x 90mm x 40mm
-
Mounting Options DIN Rail Mountable, Wall Mountable
-
Installation Plug and Play Device via 5mm pitch screw terminal blocks
Key Features
4 Digital Outputs
Available in relay, transistor (open collector) configurations.
LoRaWAN Wireless Connectivity
Long-range, low-power wireless communication for IoT applications.
Low Power Consumption
Optimized for battery-powered applications with extended operational life.
Extended Range Communication
Long-range connectivity up to several kilometers in open areas.
Watchdog Timer & Fail-safe Protection
Maintain system stability in communication loss scenarios.
Wide Power Supply Range
9-24VDC supports flexible field installation.
DIN Rail / Wall Mount Design
Compact and rugged industrial housing for versatile installation.
Smart I/O Control. Long-Range Connectivity.

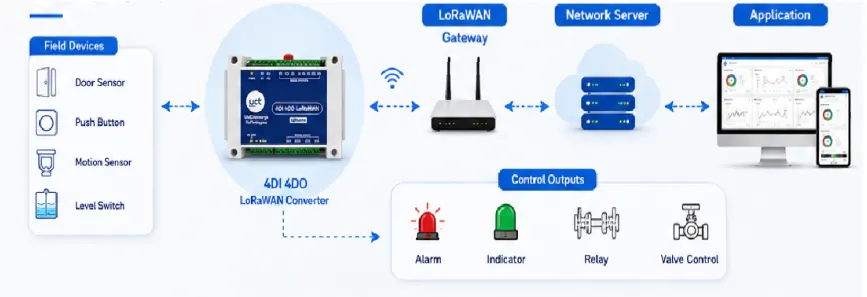

How It Works
The UCT LoRaWAN I/O Controller connects field devices and industrial control equipment to a LoRaWAN network. Input signals from sensors, switches, or equipment are collected by the controller, while output commands can be sent to operate connected relays, pumps, valves, or other compatible devices.
The collected data is transmitted through a LoRaWAN Gateway to the selected LoRaWAN Network Server and IoT platform, where users can monitor device status, configure alerts, analyze data, and execute remote control commands.
Multi-I/O Connectivity
Supports digital inputs and outputs for flexible monitoring and control of industrial field devices.
Remote Monitoring & Control
Monitor device status and remotely command connected relays, valves, motors, or other compatible devices.
Bidirectional Communication
Supports both uplink and downlink communication for monitoring and control.
Seamless IoT Integration
Easily integrates with LoRaWAN network servers, IoT platforms, SCADA, and analytics tools.
Industrial-Grade Design
Designed for reliable operation in demanding industrial and outdoor environments.

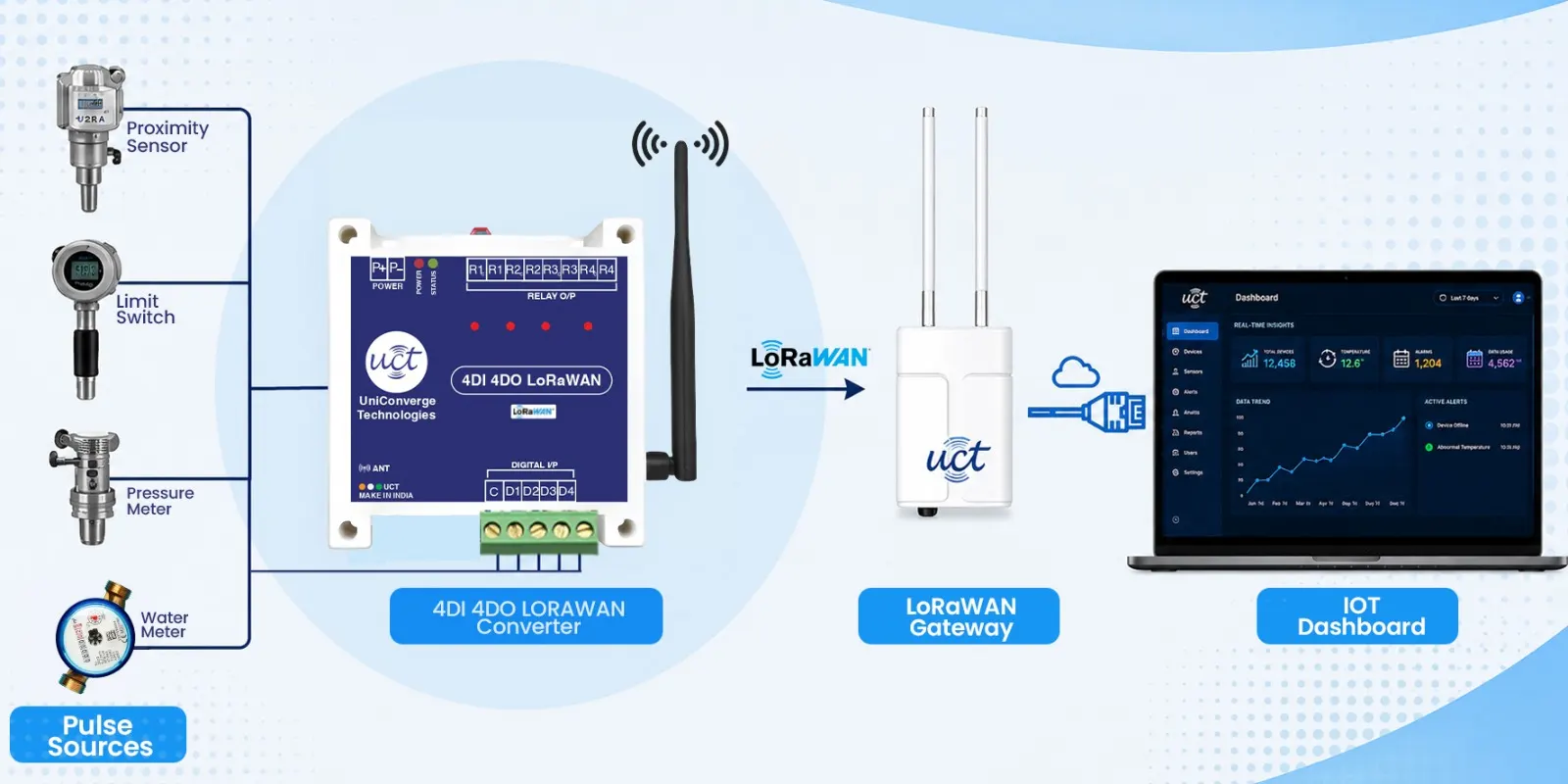

Count Every Pulse. Monitor Every Event.
Built-in Digital Input Counter for Smart Monitoring & Automation
UCT 4DI 4DO LoRaWAN Converter can use its digital inputs to capture and count pulse-based signals from connected field devices. Count events locally at the device, transmit the accumulated data over LoRaWAN, and monitor the values remotely through IoT platform or dashboard.
Accurate Pulse Counting
Capture digital pulses from meters, sensors, and machines for reliable event and consumption monitoring.
Accumulated Count
Maintain cumulative counts to track total usage, production cycles, machine events, or other repetitive operations.
Remote Data Transmission
Send counter data wirelessly through LoRaWAN for long-range monitoring without extensive communication cabling.
Smart Monitoring & Analytics
Visualize counter values, trends, and historical data through the connected IoT platform or dashboard.

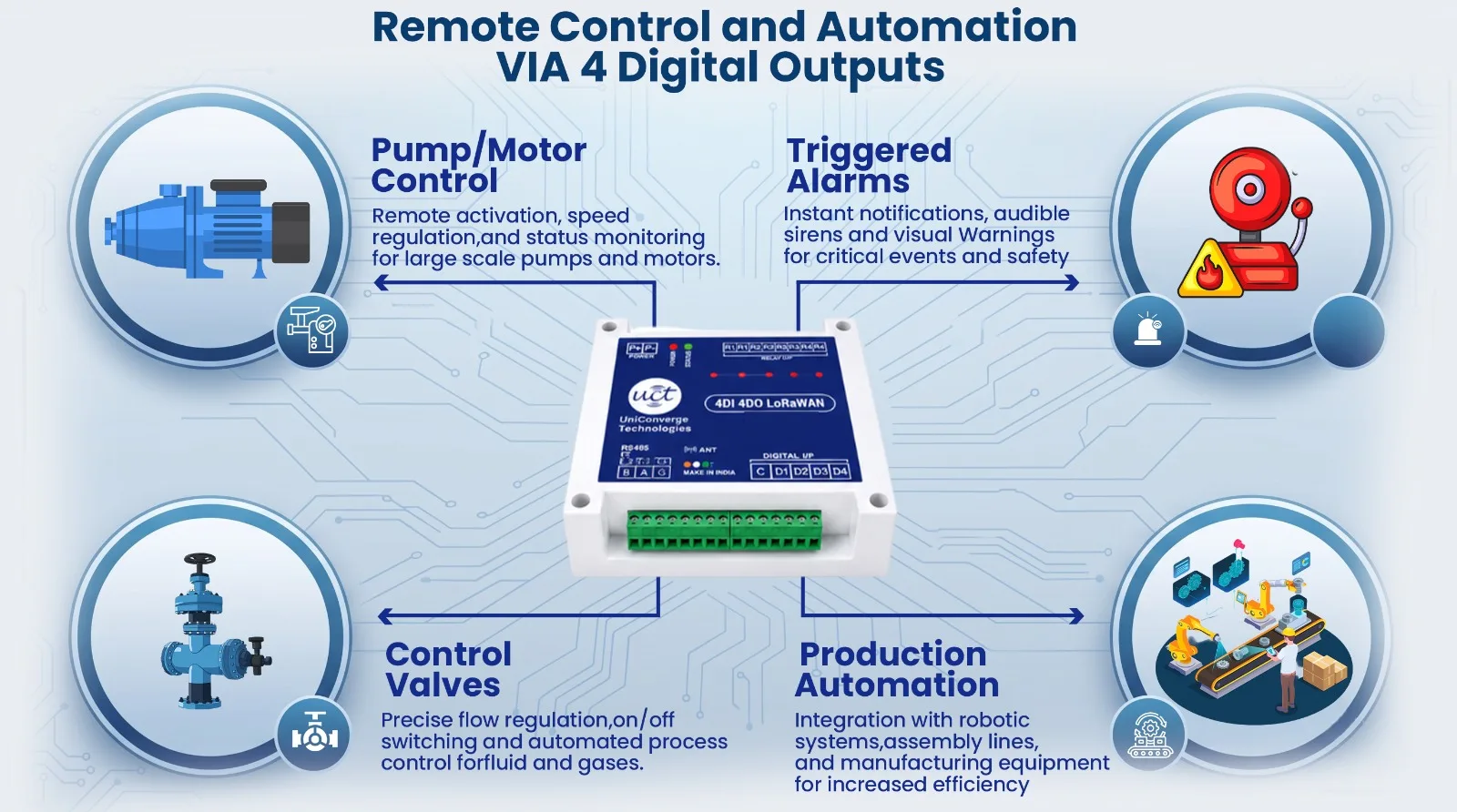

OUTPUT CONTROL
Control Remotely. Automate Instantly.
The 4 digital outputs enable remote relay control through the IoT platform, allowing connected equipment and devices to be switched or automated based on counts and events.
Control Actions
Remote ON / OFF
Control connected devices remotely from any location via the cloud platform.
Counter-Based Control
Trigger output actions automatically based on specific count values or input events.
Use Cases
- Turn ON/OFF pumps or motors
- Trigger alarms or sirens
- Control valves and actuators
- Automate based on counts or events
Ideal For
- OEE Improvement
- Production Automation
- Machine Monitoring
- Industrial Process Control
Technical Specifications
| Category | Specification |
|---|---|
| Power |
Input Power: Unregulated 9 – 24 VDC Consumption: Less than 1 W @ 12 VDC |
| Data Connectivity |
Protocol Supported: LoRaWAN Interface: 865 Mhz Wireless Interval: User Configurable (Min 15 Sec) |
| Digital I/O |
Digital Input Channels: 4 (24 VDC Wet Contact Logic Level:
LOW-0 to 5 VDC, HIGH-5 to 24 VDC) Digital Output Channels: 4 (Form A Type Relay Output, 30 VDC @ 5Amp, 220 VAC @ 5Amp) |
| Environment |
Operating Temperature: 0 to 55° C Storage Temperature: -10 to 70° C |
LoRaWAN I/O Controller Applications and Use Cases
Industrial Automation
Remotely monitor machine status and control motors, pumps, conveyors, valves, and actuators wirelessly – even in areas through 5-10 KMAM-enabled automation systems.

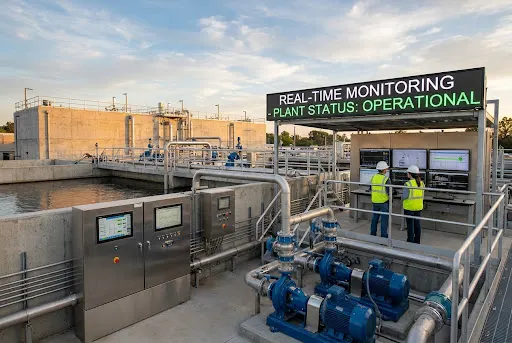

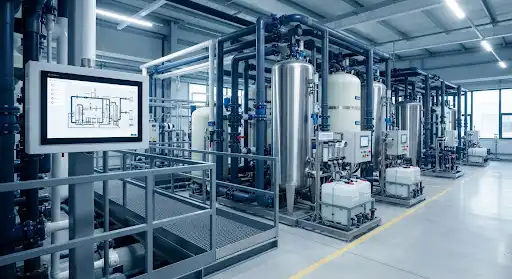

Water & Wastewater Management
Enable remote pump ON/OFF control, monitor valve positions, and deploy equipment status monitoring for water treatment plants, pumping stations, and distribution systems.

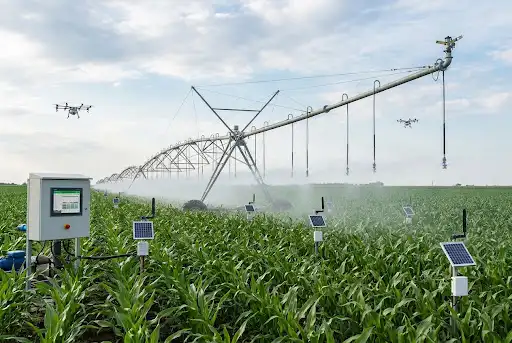

Agricultural Irrigation
Automate irrigation pumps, observe valves, and integrate with digital flow and level sensors for water-efficient field tracking and/or solar usage and reduce manual operation.

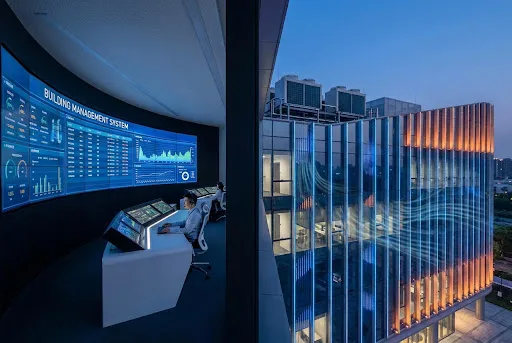

Building & Facility Automation
Monitor door, window, and motion sensors using system inputs; switch, relays, alarms, and HVAC equipment remotely for improved comfort, energy efficiency, and centralized efficient facility management.

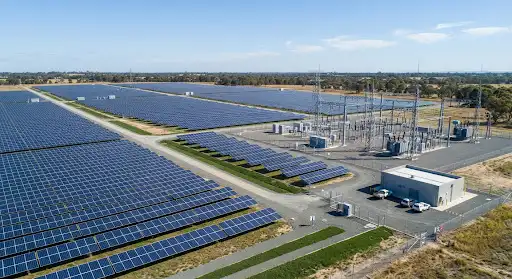

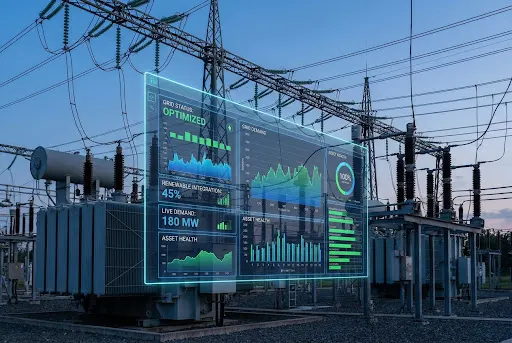

Energy & Utility Monitoring
Monitor generator status, UPS conditions, and utility infrastructure to improve operational, safety, performance, and maintenance efficiency.

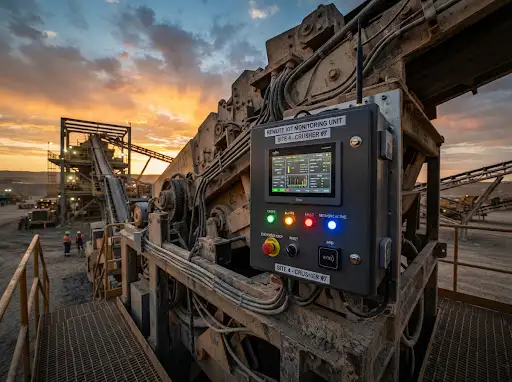

Remote Equipment Monitoring
Collect equipment status, fault alarms, conditions, or fault signals of equipment installed in remote locations without dedicated wireless network infrastructure.

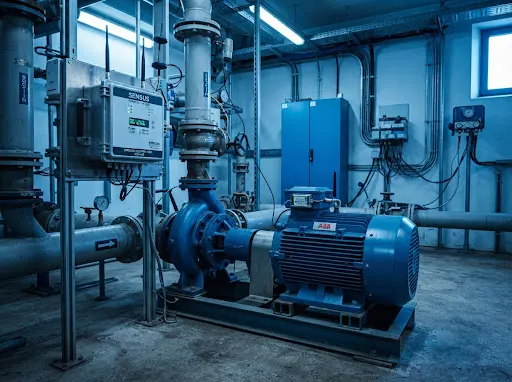

Pump & Motor Control
Implement remote ON/OFF switching interlock for water pumps, drainage pumps, booster pumps, motors, and irrigation system equipment.

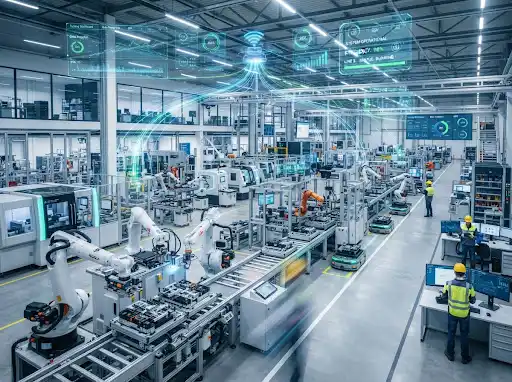

Smart Factory & Industry 4.0
Connect machines, production lines, equipment PD alerts into alerts for predictive, adaptive analytics and production tracking to enable smart industry 4.0 platforms.

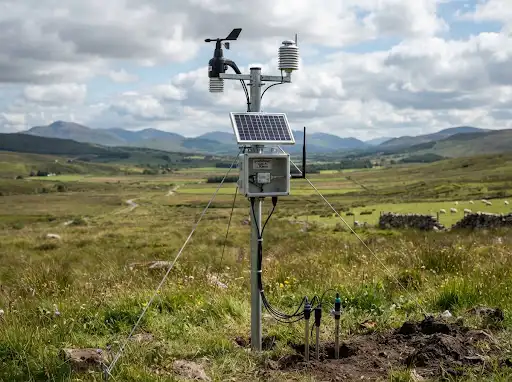

Environmental & Field Monitoring
Monitor level, alarm switches, spillover, wireless alerts, and remote water reservoirs conditions and trigger appropriate control actions.
Infrastructure & Remote Asset Management
Deploy the controller in rail networks, pipelines, substations, wind farms, solar farms and control of alarm, alarms, lighting, pumps, switches, and other field assets.
