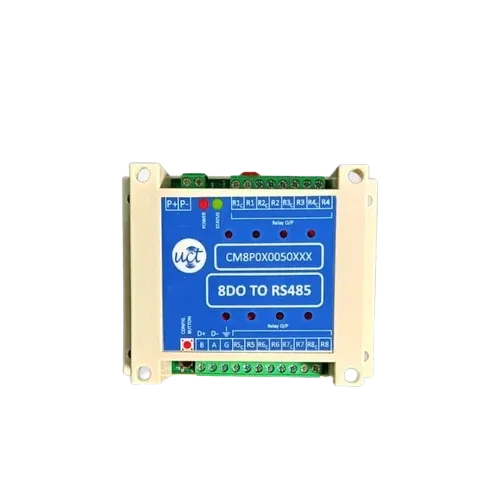

8 Digital Output to RS485
The 8-Digital Output to RS485 Modules converts input from connected Modbus Master over RS485 to digital output. It Provides RS485 interface supporting Modbus RTU Protocol. It supports half-duplex communication with two wires needed for transmit and receive data from legacy devices.
| Input Power: | Unregulated 9 – 24 VDC |
| Power Consumption | Less than 1W @12 VDC |
| Protections | Reverse Polarity, Overvoltage (+/- 35 VDC), Short Circuit, Transient Voltage, TVS/ESD |
| Connector | 5mm pitch screw terminal blocks |
| Enclosure: | ABS Enclosure |
| Installation | Type Plug andPlay |
| Connectivity Supported: | RS485 |
| Protocol Supported: | Modbus RTU |
| Communication Interface: | 2 Wire Type |
| Watchdog Timer: | System (5 Sec) and Communication |
| Channels: | 8 |
| Contact Rating: | 24 VDC Sink/source (isolated) Up to 5000 VRMS for 1 minute |
| Type: | Form A Type Relay Output |
| Operating Temperature: | 0 to 55°C |
| Storage Temperature: | -10 to 70°C |
| Operating Humidity: | 30 – 95% RH (non-condensing) |
| Build Architecture: | Modular |
| Mounting: | DIN Rail Mountable, Wall Mountable, Stack Mountable |
| Installation | Plug and Play Device |
| 12 Months from date of installation or 18 Months from date of delivery (whichever is earlier)* |
